分析篇-战斗
摘要
本文对战斗实现进行分析,主要涉及以下内容
- 战斗地图与角色
- 技能与 buff 机制
- NPC 战斗 AI
战斗地图
地图分层

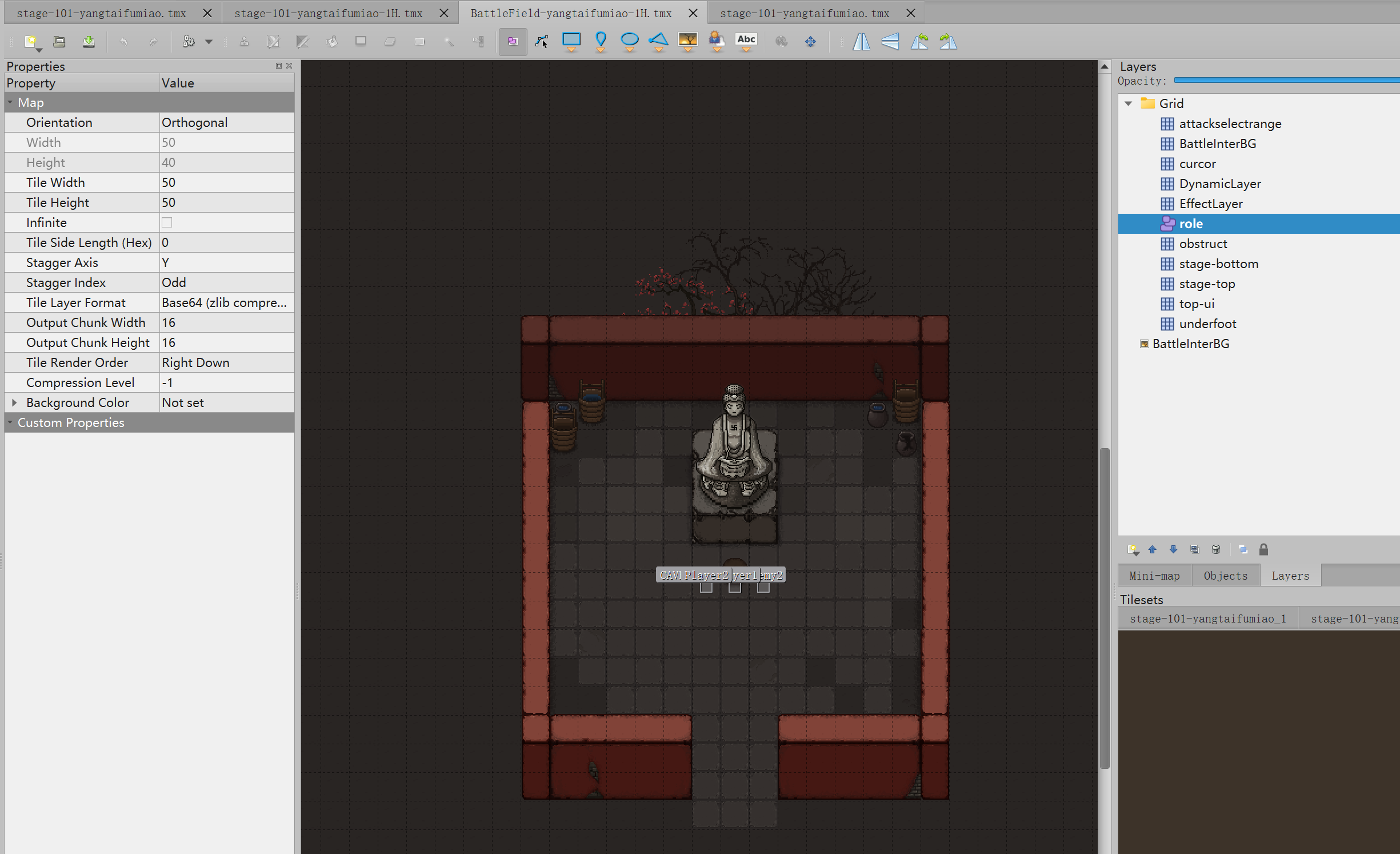

与场景大地图相比，战斗地图多了几层

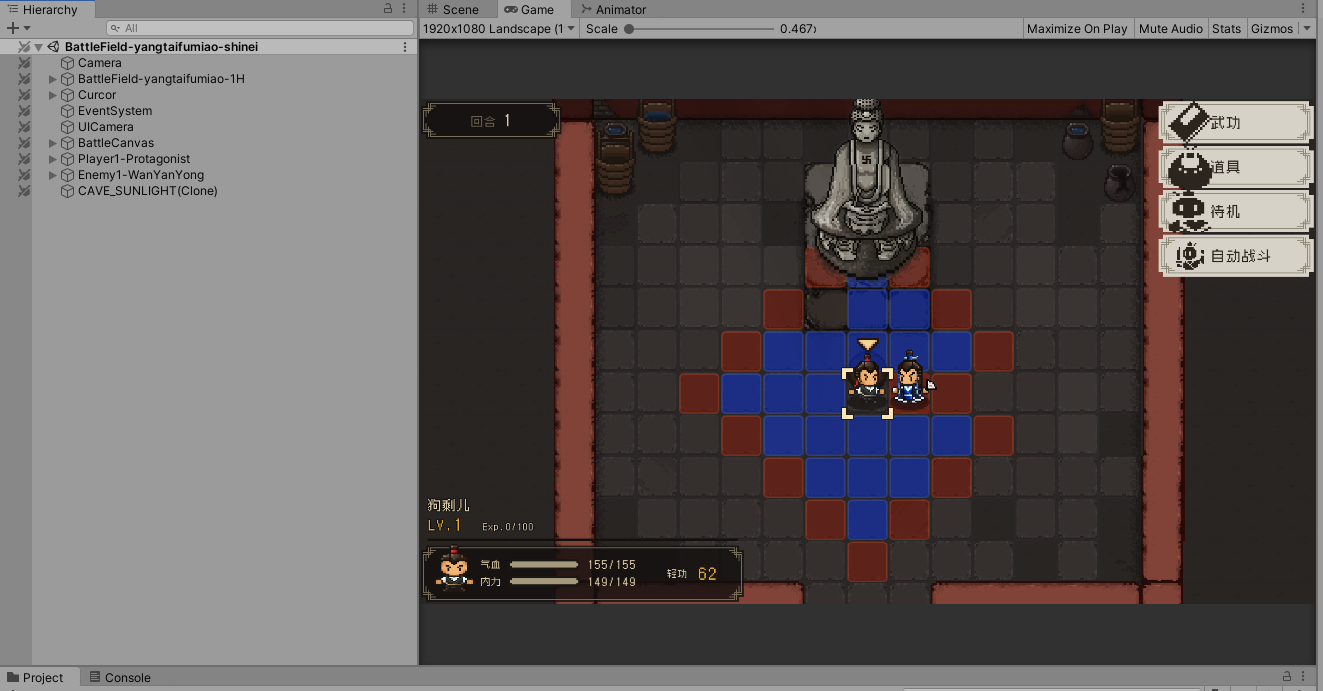

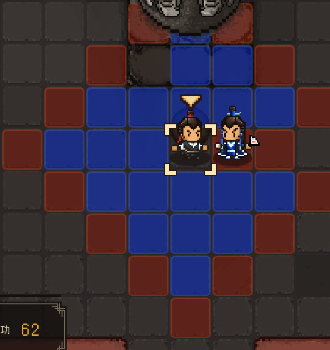

attackselectrange 层
负责展示攻击范围，生成 AtkSelRangePrefab后将 sortingOrder设置到这一层
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
| // Assets\Scripts\Assembly-CSharp\BattleObject.cs
protected void Awake()
{
this.m_SortingOrder_1 = Enumerable.FirstOrDefault<TilemapRenderer>(UnityEngine.Object.FindObjectsOfType<TilemapRenderer>(), delegate (TilemapRenderer s) {
return s.name == "attackselectrange";
}).sortingOrder;
}
public void ShowAttackSelectRange(Vector3Int attackPos)
{
this.ClearAttackSelectRange(true);
foreach (KeyValuePair<Vector3Int, int> pair in dictionary)
{
if (!this.battlecontroller.obstacle.Contains(pair.Key))
{
this.attackSelectRange.Add(pair.Key, pair.Value);
}
}
foreach (KeyValuePair<Vector3Int, int> pair2 in this.attackSelectRange)
{
if (this.m_AttackType[3] == "2")
{
this.AtkSelRange = UnityEngine.Object.Instantiate<GameObject>(SharedData.Instance(false).HealSelRangePrefab, this.battlecontroller.map.transform);
}
else
{
this.AtkSelRange = UnityEngine.Object.Instantiate<GameObject>(SharedData.Instance(false).AtkSelRangePrefab, this.battlecontroller.map.transform);
}
this.AtkSelRange.transform.localPosition = new Vector3((float) (0x19 + (pair2.Key.x * 50)), (float) (-25 - (pair2.Key.y * 50)));
this.AtkSelRangeObject.Add(this.AtkSelRange);
this.AtkSelRange.GetComponentInChildren<SpriteRenderer>().sortingOrder = (this.m_SortingOrder_1 > 0) ? this.m_SortingOrder_1 : 0;
}
}
|
BattleInterBG 层
BattleInterBG是一个 1X1的图片，这一层没有看出作用
1
2
3
4
5
6
7
8
9
10
11
12
13
| // Assets\Scripts\Assembly-CSharp\BattleController.cs
public SpriteRenderer m_BattleInterBG;
private void Awake() {
this.m_BattleInterBG = this.map.transform.Find("BattleInterBG").GetComponent<SpriteRenderer>();
}
private void Start()
{
this.m_BattleInterBG.sortingOrder = Enumerable.FirstOrDefault<TilemapRenderer>(UnityEngine.Object.FindObjectsOfType<TilemapRenderer>(), delegate (TilemapRenderer s) {
return s.name == "BattleInterBG";
}).sortingOrder;
}
|

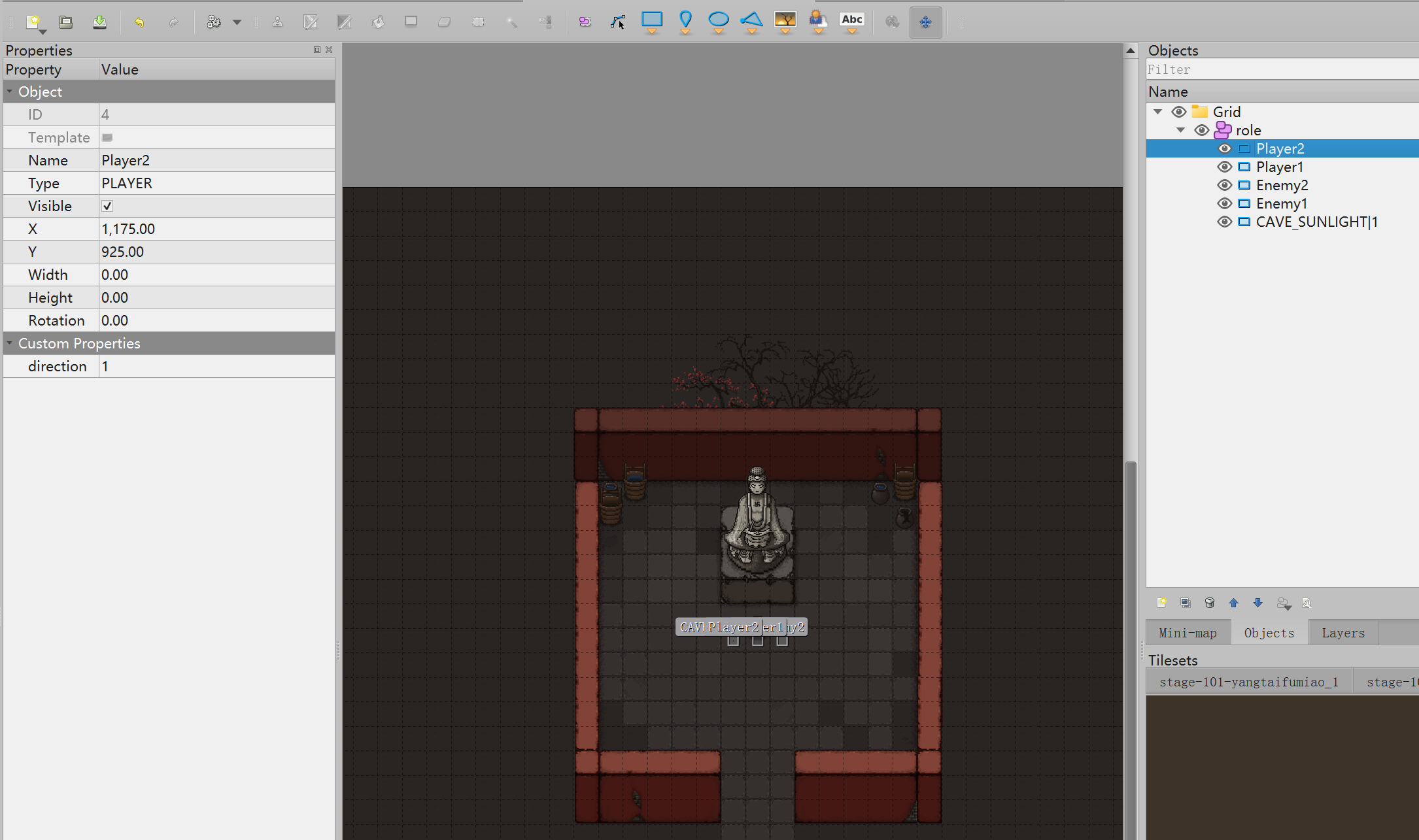

role 层
role层主要放置环境特效、角色和敌人的位置，朝向
